Facing bricksN7 Brick B

Technical data sheets

Color description: The colour of the body is brown-red and ranges from aubergine-red to red-brown with an irregular beige-white surface texture with a lot of nuances and a few light yellowish accents.
Manufacturing dimensions (L x W x H): ca. 220x70x52 mm (LxWxH)
Quantity / m² with a traditional joint: 68 (12 mm)
Number / m² with a thin joint: 77 (6 mm)
size 2: ca. 215x100x65 mm (LxWxH) - On demand > 2000 m²

N7 Brick B

Brown red ecological Waal format

Brick B is a brown red (Aubergine red frozen) moulded brick produced using the Wasserstrich method. It carries both our Hand-Made label and the ECO-7-size label. Our Hand-Made label guarantees a strong, natural nuance. The unsanded Brick B also carries the ECO-7-size label because it is 7 cm deep, unlike the classic Waal format which is 10 cm deep. Minerals are added during the production process to give this facing brick a unique surface texture.

Texture Generator

References

Brick slips

Technical data sheets

case studie N7 Brick B

The ecological facing brick Nature7 Brick B creates an urban feel

Conforta in Deurne becomes an energy-efficient district

The project lies in the middle of a block in the Conforta district and consists of a passive crèche, an underground car park and seven passive homes with a large roof terrace and four compact smaller homes.

In the middle of the block is a large oblong garden.

Creativity with facing bricks defines look of office building

Brick has been and still is the most durable and timeless material

CAW Oost-Vlaanderen is in the process of constructing an office building with primary care facilities and 16 short-stay units on the site of a former brewery in the heart of Sint-Gillis-bij-Dendermonde.

312 Hackney Road: how World War II bomb damage became an opportunity for potential improvements in layout, design, material choice and alterations to the fabric

Dark honey-like colour Nature7 Brick B ensures perfect integration with the neighbouring buildings

The former building at 312 Hackney Road was a war-damaged end of terrace, externally braced and internally propped. It stood like this for years to prevent collapse following World War II bomb damage.

Show all case studies

References

Search by city

Print list

Reference list N7 Brick B

You can scroll in this list

Postal code	City	Street	Bond	Joint	Window
2100	Deurne	Confortalei		12 mm
3311 TX	Dordrecht	Vest 96	Random bond	12 mm
3313 CR	Dordrecht	Werf van Schouten 50	Random bond	12 mm
9940	Evergem	Korianderstraat 38	Random bond	6 mm
9890	Gavere	Steenweg 57	Random bond	12 mm
9052	Gentbrugge	Het Kamp	Random bond	12 mm
9050	Gentbrugge	Jacques Eggermontstraat rechts v 61	Random bond	6 mm	White
3500	Hasselt	Wolskestraat 2	Random bond	6 mm
3582	Koersel	Sportlaan 37	Random bond	6 mm
8500	Kortrijk	Doorniksesteenweg 145	Random bond	6 mm

Postal code	City	Street	Bond	Joint	Window	Remarks
2100	Deurne	Confortalei		12 mm
3311 TX	Dordrecht	Vest 96	Random bond	12 mm
3313 CR	Dordrecht	Werf van Schouten 50	Random bond	12 mm
9940	Evergem	Korianderstraat 38	Random bond	6 mm
9890	Gavere	Steenweg 57	Random bond	12 mm
9052	Gentbrugge	Het Kamp	Random bond	12 mm
9050	Gentbrugge	Jacques Eggermontstraat rechts v 61	Random bond	6 mm	White
3500	Hasselt	Wolskestraat 2	Random bond	6 mm
3582	Koersel	Sportlaan 37	Random bond	6 mm
8500	Kortrijk	Doorniksesteenweg 145	Random bond	6 mm
9050	Ledeberg	Jozef Vervaenestraat 6-12	Random bond	12 mm
3210	Linden	Jagersdreef 13	Random bond	6 mm
3920	Lommel	Koning Albertlaan 86
3920	Lommel	Stationsstraat 190	Random bond	6 mm
E2 7SJ	London	312 Hackney Road		12 mm	grey	appartment

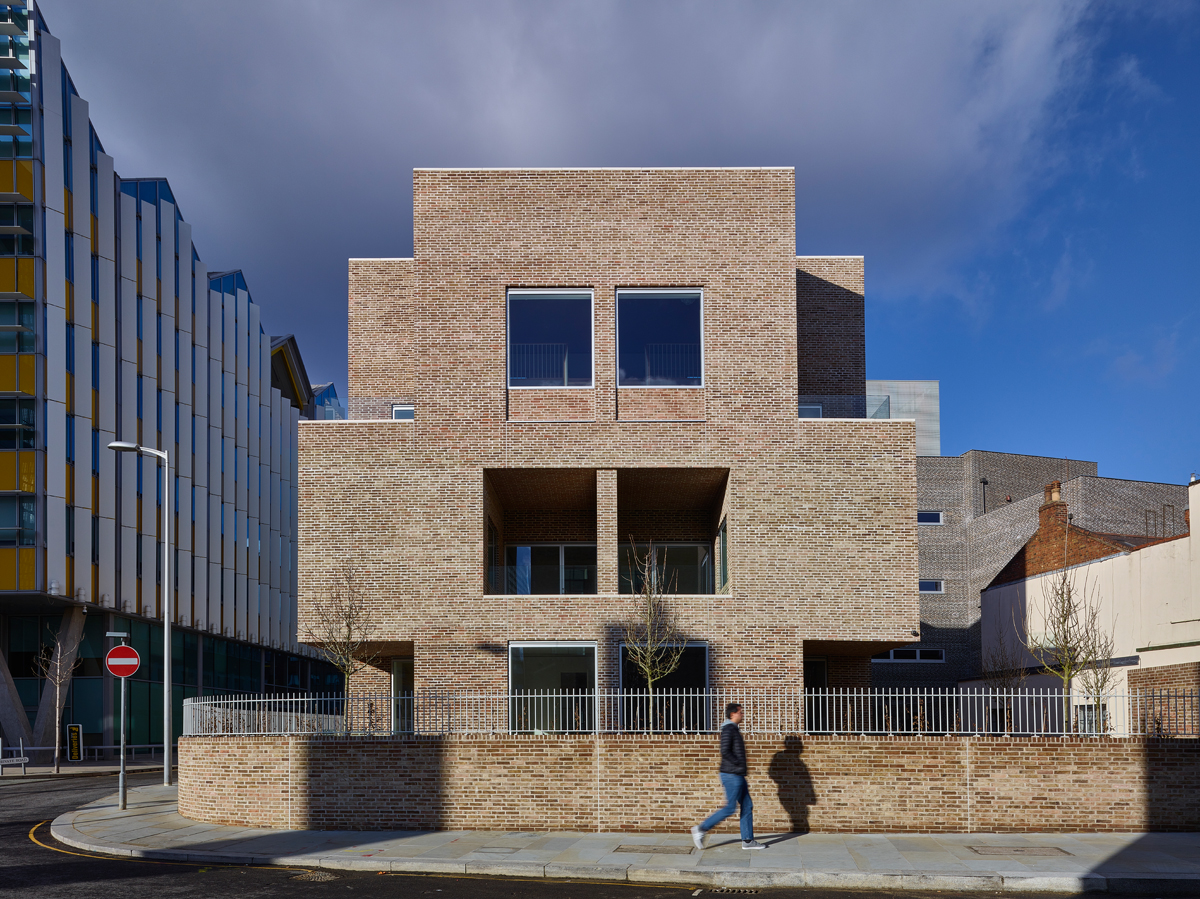

W10 6TH	London	Freston road	Random bond	12 mm		Nottingdale village
SE18	London	Nicholas Road		12 mm		Nottingdale Village Phase 3 and 4
9820	Merelbeke	Appelstraat 6	Random bond	6 mm
9820	Merelbeke	Motsenstraat 98	Random bond	6 mm
5066 EA	Oisterwijk	Postelstraat	Random bond	12 mm
3900	Overpelt	Hoevenstraat 224	Random bond	12 mm
8200	Sint-Andries	Beisbroekdreef 12	Random bond	12 mm
8210	Veldegem	Spoorwegstraat 11	Random bond	6 mm
1991	Velserbroek	Hofgeesterweg	Random bond	12 mm
2830	Willebroek	Akkerlaan	Random bond

You can scroll in this list

Print all

Preparation of the construction site

Quality brickwork starts with the proper storage of the materials. Provide a firm level base so that bricks are not in contact with rain and/or dirt.

As clay is a natural material, successive production runs of the same kind of bricks may present colour variations and size tolerances.

The following precautions will help minimizing this:

Always order the full amount of bricks required for a specific site. In this way, the entire order can be made during one production run.
Try to have the full order supplied at one time. If this creates several deliveries, always mix a number of packs from the previous delivery with a number of packs from the new delivery. This procedure is especially recommended in case of re-order or for an additional order.
Take bricks diagonally across the pack.
Draw and use bricks from at least five different packs.
For setting out, use bricks from the delivery made to the site in question. Do not exclusively use the theoretical dimensions of the brick, or samples previously supplied, or different production run from that intended for the site.
As soon as the bricks arrive on site, check delivery tickets and certificates against the specification and order. Also check that there are no visible inconsistencies with the order.
Do not lay bricks in freezing weather or protect the ‘fresh’ masonry with insulating mats in order to avoid frost damage to the mortar.
In the case of prolonged dry hot weather, lightly dampen the newly laid brickwork to stop the mortar drying and curing too quickly.
Do not lay bricks in precipitation in order to prevent mortar from running on the wall.

Avoid Efflorescence

Brickwork is sometimes marred by white bloom. This efflorescence is usually caused because bricklaying is done under unfavourable weather conditions. The necessary protective measures are often not implemented due to a tight schedule and fast building pace. In very wet conditions, water in soluble substances can result in efflorescence on the surface. In spring as well as autumn, after a wet period (when the brickwork has dried again), soluble substances can rise to the surface as a result of moisture transport. After evaporation of the water, a white bloom is left behind. (Source: Efflorescence on brickwork – Heidelberg Cement Group)

Efflorescence on brickwork is always likely to occur. There is no brick - or combination of a certain brick with a specific mortar - that is absolutely efflorescence-free. By taking a few simple precautions, the risk of efflorescence can be reduced.

During and after laying, protect the newly built brickwork for a height of at least 60 cm - but ensure there is airspace between the brick face and the waterproof covering.
Provisionally install rainwater down pipes to avoid saturation of the newly laid brickwork
Never lay bricks in driving rain conditions
